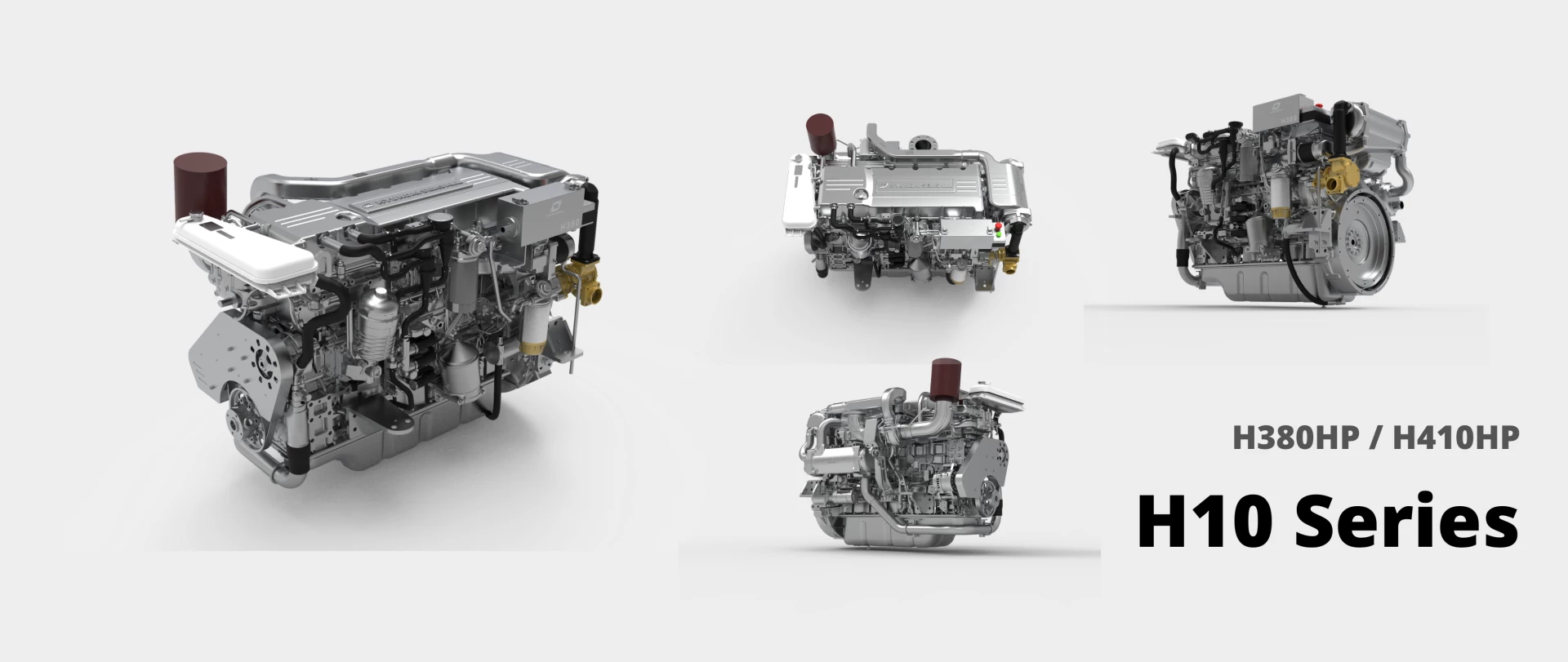

H-10 410HP Engine

 This modern, electronically controlled design delivers 410HP and 174kg·m of torque from the 10 liter in-line 6 cylinder engine. The broad flat torque curve proves Hyundai SeasAll’s diesel development capabilities are world-class and beats performance of competition’s comparable models.

Download the Hyundai H-10 410HP Engine brochure

Economy Assured

Economy is assured by the state-of-the-art fuel management system featuring Electronic Unit Injectors(EUI). The electronic engine control system makes the engine lighter, quieter and more fuel efficient with excellent compact dimensions.

Efficiency Assured

The unique one-piece CGI (Compacted Graphite Iron) cylinder head makes the engine lighter and quieter than conventional heads for more comfort onboard.
Plus, longevity is assured with close to double the fatigue life of aluminum.

Technical Descriptions

Engine
• 6 Cyclinder in-line, 24 valve OHC
• One-piece Compacted Graphite Iron (CGI) cyclinder block
• Gallary oil-cooled long lasting mono steel pistons.
• Integrated water jacket
• Single serpentine belt system
• Drive belt auto tensioner

Air Inlet System
Reusable air filter

Intake Extension Kit (Optional)

Fuel System
• Electronic Unit Injector (EUI)
• Gear-driven fuel pump
• Electronically controlled injection timing
• Fine fuel filter and water separator

 Electrical System

• 24 volt - 70A alternator
• Auxiliary engine stop button

• Air heating system for a trouble-free cold start
• NMEA 2000 Converter (Optional)
• 2 Pole system (Optional)

Cooling system
• Gear-driven seawater pump
• Seawater-cooled intercooler, heat exchange
 Auxiliary connector for cabin heating

• Corrosion resistant material for seawater circuit
• Easily accessible seawater impeller pump

 Engine Mounting|
• Adjustable engine mounts (Optional)

Lubrication System
• Easily exchangable oil filter cartidge

• Integrated oil-cooler in cyclinder block
• Closed system with forced feeding
• Eco type oil filter
• Electric oil extraction pump
• Gear drive engine oil pump

Instrument Box Assembly
• Engine self-protection and diagnosis

• Displays CAN information
• Displays engine diagnostics error codes
• Audible alarm and control lamps
• Idle & PTO rpm adjustable switch

 Exhaust System
• Cast Iron exhaust pipe
E-VGT (Electric Variable Geometry Turbocharger)

Emmissions
IMO NOx {EIAPP} Compliant

Type Approval
•RINA Classification Society

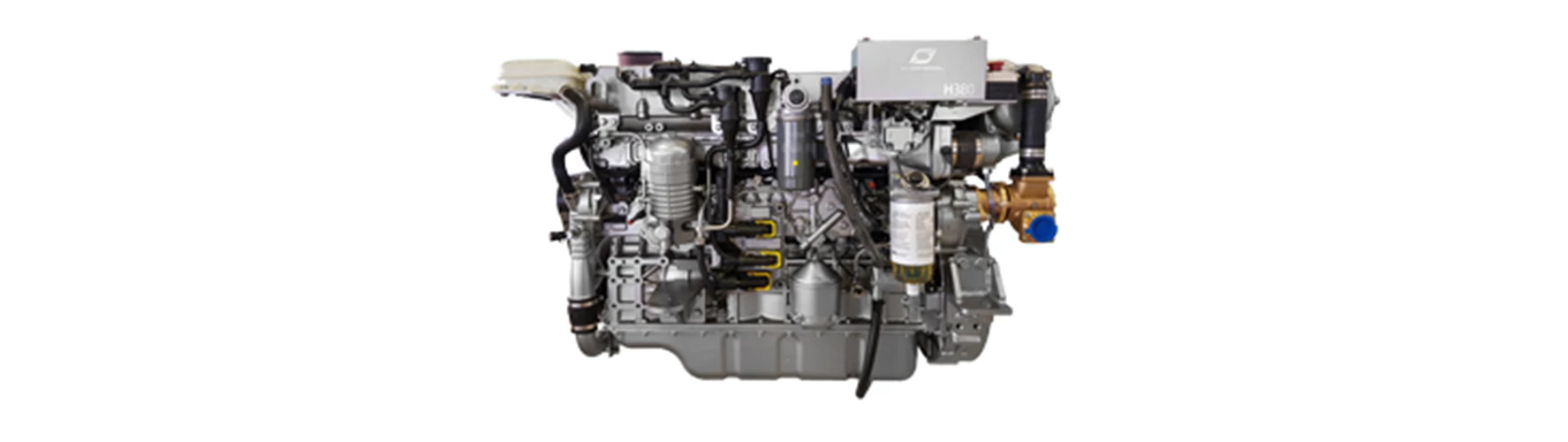

H-10 410HP
