Allpower Marine - Boat Test

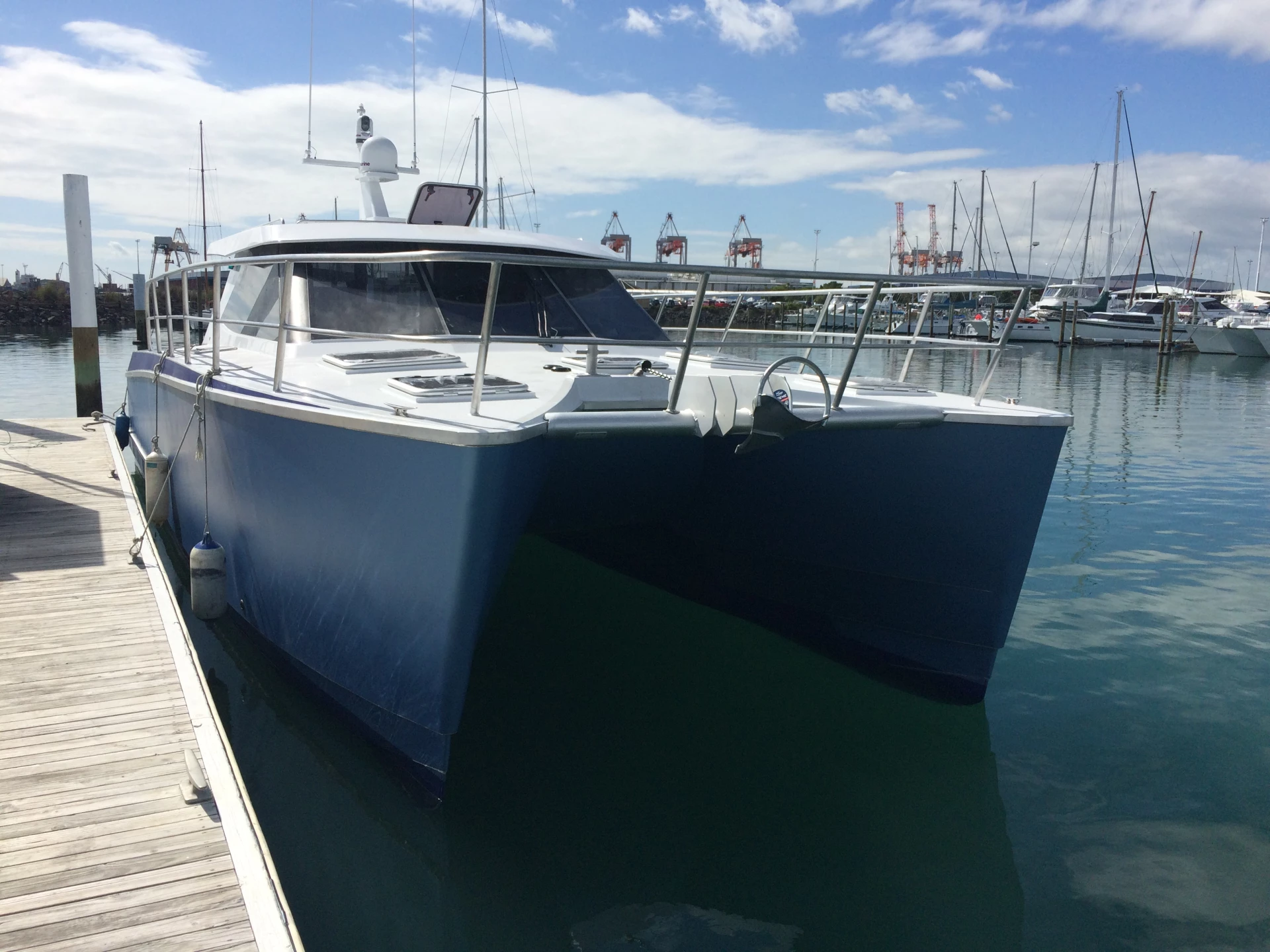

Alloy Cats 12m

Date: March 2016
Manufacturer: Alloy Cats
LOE: 11.98m
WLL: 11.5
Displacement: 8000kg
Fuel: 800L

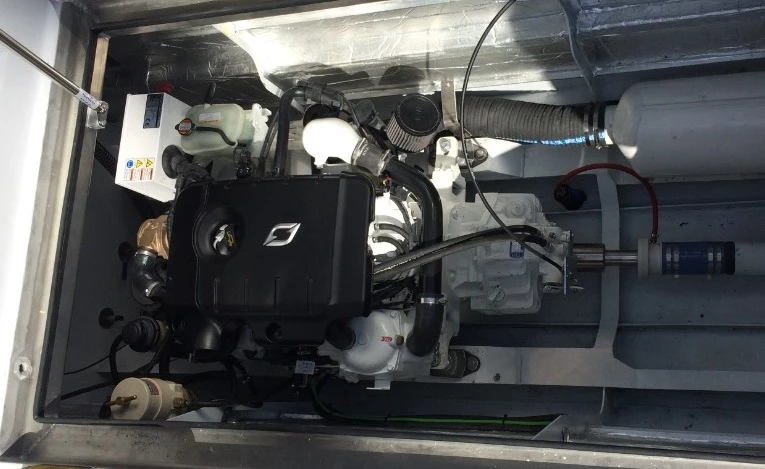

Engine: 2x D170P
Engine HP: 2x 170HP
Drive/Ratio: ZF45A-2.43:1
Propeller: 4 Blafe, 18.5x 22.5

RPM Knots Fuel L/H Combined Range NM
1000 4.9 3.8 1032
1500 7.1 7.7 732
2000 8.7 14.6 477
2500 12.6 22.8 440
3000 16.3 35.0 373
3200 20.0 40.0 400
3500 22.1 53.1 333
3860 23.2 71.0 261
